Chameleon TD LITE

The Chameleon TD LITE antenna will operate at all frequencies in the 1.8-54 MHz band without any adjustment with most modern external antenna tuners. No masts or guying are required.

The antenna will work successfully supported by trees, masts, the tops of vehicles or any convenient object or structure. The antenna works most effectively when elevated at a reasonable height, but if no support is available it will also radiate (with limited efficiency) when stretched out on the ground. The Chameleon TD LITE antenna is ideal for camping or temporary installation in a townhome or other houses with a small yard or antenna restrictions. The Chameleon TD LITE can be deployed by the operator in the field in less than 15 minutes, using almost any available support, with no masts or guying required.

The radiation pattern of the antenna has a significant vertical component at all frequencies, making it ideal for NVIS applications.

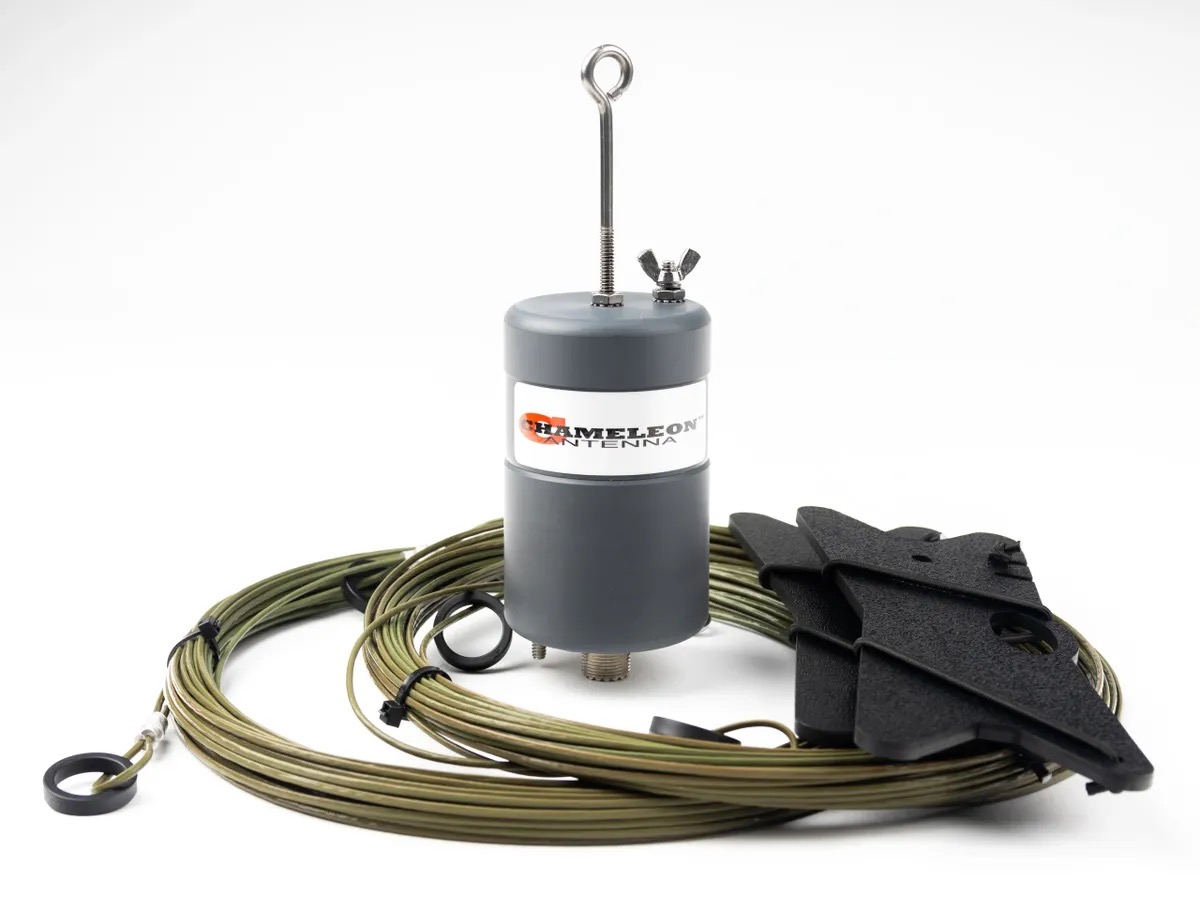

The antenna system consists of:

1 X EMCOMM II TRANSFORMER

2 X 18m Tinned Copper KEVLAR PTFE (Teflon) (-70°C to 150°C) wire

All Stainless Steel Hardware

Specifications:

Frequency:6M – 160M

Power:500W SSB or 250W CW

USER GUIDE
